Product Line

Float Level Switch

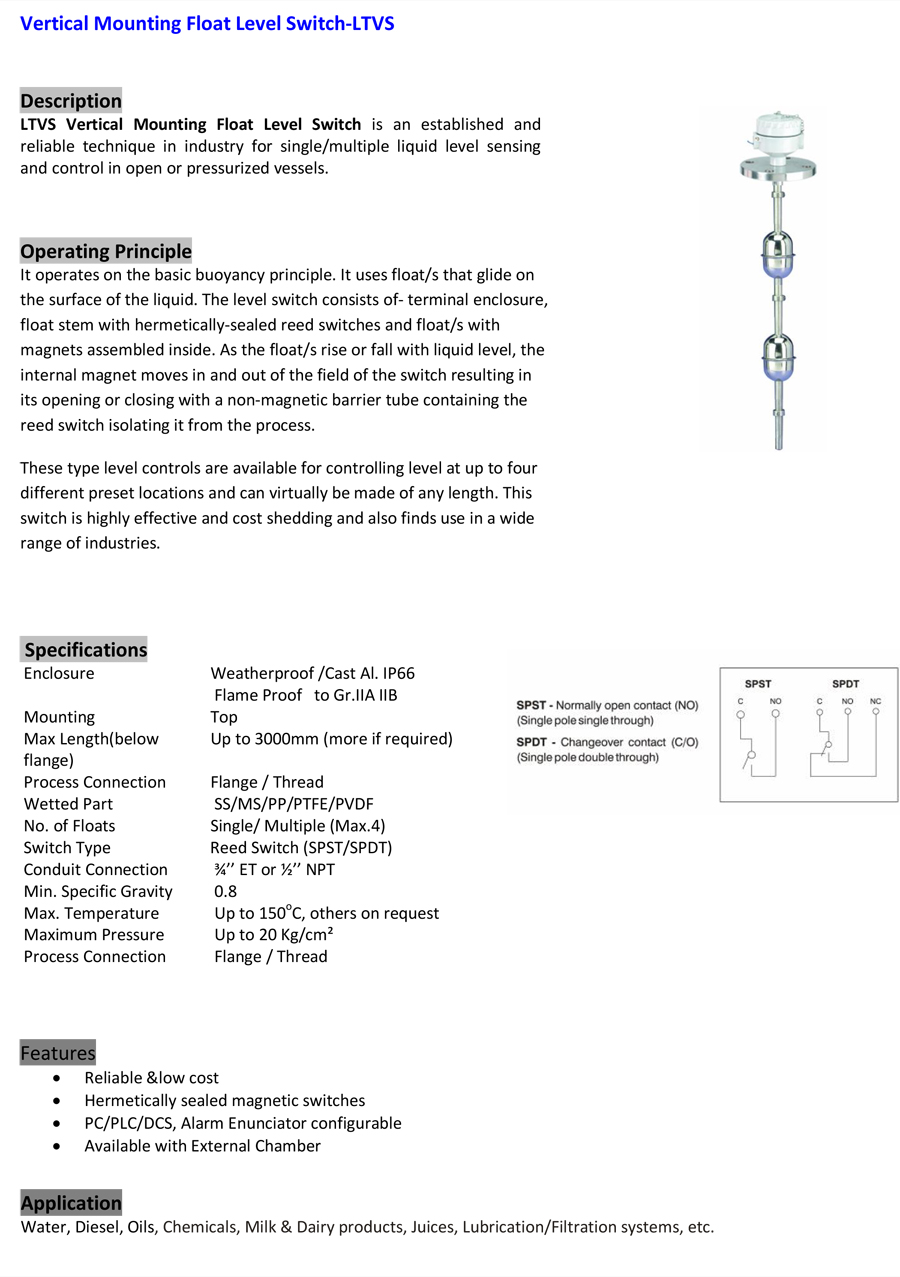

Vertical Mounting Float Level Switch

It is an established and reliable technique in industry for single / multiple liquid level sensing and control in open or pressurized vessels. Hermitically sealed sensors are activated (NO/NC) as the float passes them. Have IP66.

Simple and proven design operates in most liquid.

Horizontal Mounted Level Switch

Float mounted at one end of rigid rod moves with change in level with magnetic capsule at other end of rod moves accordingly within fixed limits. Micro switch contacts (NO/NC) are accordingly activated to produce desired process output. Have IP66.

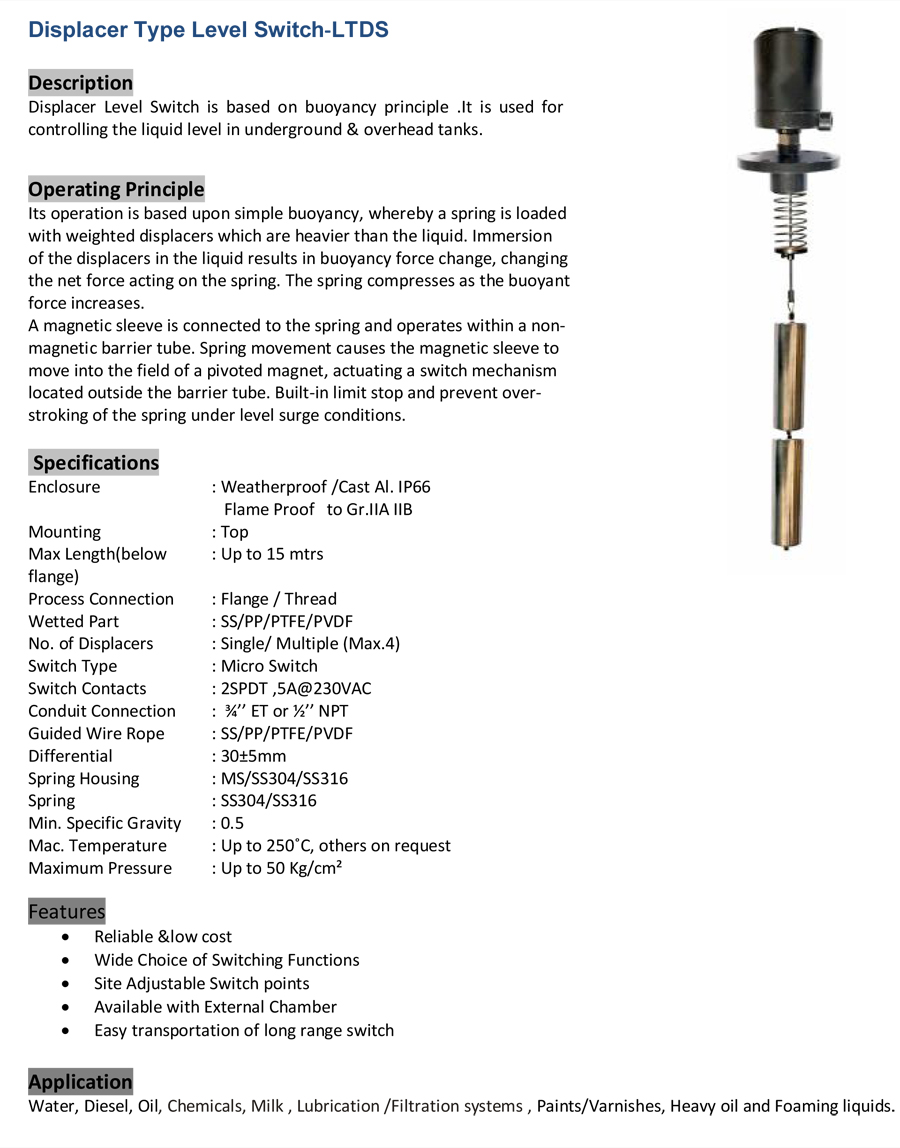

Displacer Type Level Switch

Displacer Type Level Switch is based on buoyancy principle whereby a spring is loaded with weighted displacers which are heavier than the liquid under control. Immersion of the displacer in the liquid results in a buoyancy force change, producing a spring load reduction which moves the spring there by actuating the magnetic switch which is kept inside the stem. Have IP66.

Cable Float Switch

Cable float switch is a control device for filling and discharging pumps, motor and magnetic valves. It is also an alarm device at certain predetermined surface levels. It is simple, rugged and reliable. Have IP66.

Chamber Type Level Switch

External cage type level switches are completely self-contained units designed for side mounting to a tank or vessel with threaded or flanged pipe connections. The float movement is magnetically transmitted to switch action at the desired level. Have IP66.

Can be used in high temperature upto 400 C (with cooling fins)

Mini Float Level Switch

Mini Float level switches are designed to mount through the top/side of the tank. It can fit anywhere because of its shape and compact size. These are generally used for small tanks containing water & chemicals.
